Thermostat Wiring: An In-Depth HVAC Guide

If you’ve ever found yourself staring at a tangle of wires behind your thermostat, wondering what connects where, you’re not alone. Thermostat wiring can seem like a complex puzzle, but with a bit of guidance, it becomes manageable. If you’re upgrading to a smart thermostat or troubleshooting your current setup, understanding the wiring is vital for efficient climate control in your home. Let’s break it down!

Understanding Your HVAC System

Before diving into the wires, let’s get a grasp on the HVAC system—that’s Heating, Ventilation, and Air Conditioning. It’s the system responsible for keeping your home warm in the winter and cool in the summer. Depending on your setup, you might have a heat pump, a conventional heating system, or a combination of both. Each system has its own wiring requirements, so identifying your system is the first step.

To read about practical, quick HVAC maintenance tips for your home, visit our blog!

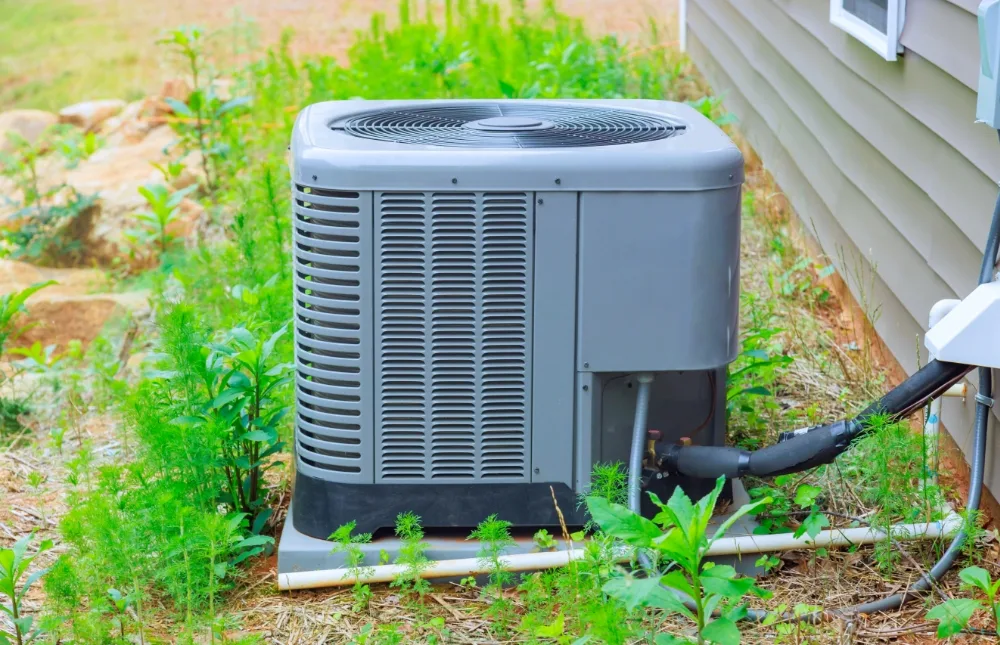

Thermostat Wire Terminals and Labels

The Basics of Thermostat Wiring

Thermostats act as the control center for your HVAC system, sending signals through various wires to regulate temperature. Here’s a breakdown of common thermostat wires and their functions:

  • R (Red Wire): Red wire’s primary function is to provide power from the transformer. In systems with separate transformers for heating and cooling, you’ll see Rh (heating) and Rc (cooling).
  • C (Common Wire): Completes the circuit, providing a continuous power supply. Essential for smart thermostats that require constant power.
  • W (White Wire): Controls the heating system.
  • Y (Yellow Wire): Yellow thermostat wire manages the cooling system, signaling the air conditioner to activate.
  • G (Green Wire): Operates the fan, regulating HVAC airflow.
  • O/B (Orange or Blue Wire): Controls the reversing valve in heat pump systems, switching between cooling and heating modes.
  • E (Emergency Heat): Activates emergency heating when the primary system fails.
  • Aux (Auxiliary Heat): Engages auxiliary heat during extremely cold conditions.

Understanding these wires is important for proper wiring and efficient functioning of your systems.

Wondering if a smart thermostat is a worthwhile investment? Read about all the benefits of a smart thermostat for your home.

Call Us Today

24 Hours a Day, 7 Days a Week.

Need Help? Call Us

615-788-4329

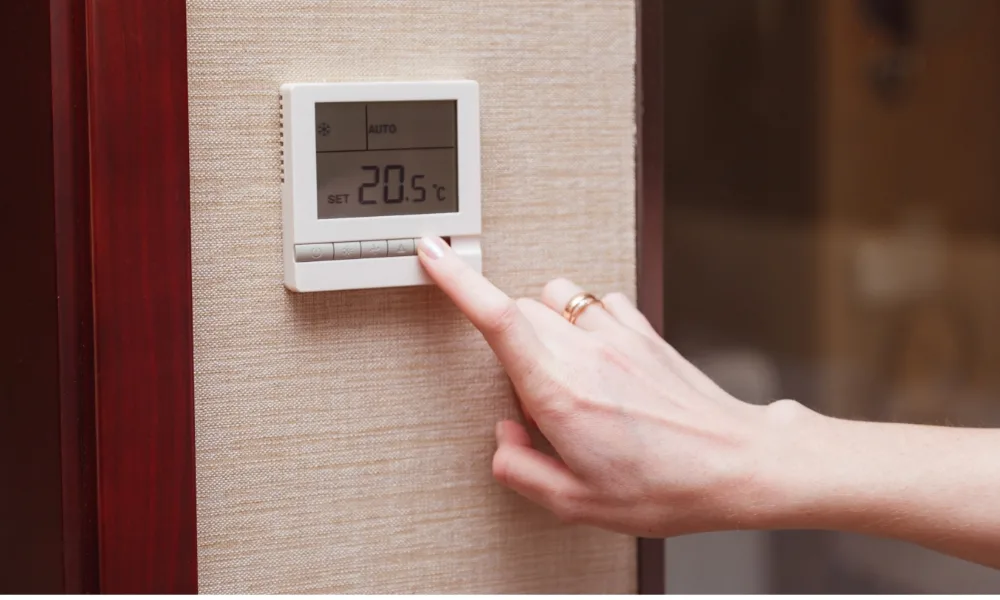

Guide To Thermostat Wire Connections For HVAC

Wiring Configurations: Single vs. Multi-Stage Systems

Your HVAC system may be single-stage or multi-stage:

  • Single-Stage Systems: Operate at full capacity when heating or cooling. Wiring is straightforward, typically involving R, W, Y, G, and C wires.
  • Multi-Stage Systems: Offer variable heating or cooling levels for improved energy efficiency. These systems require additional wires, such as Y2 for a two-stage cooling system or W2 for a two-stage heating system.

Properly identifying your system is important for correct wiring installation and optimal performance of thermostats.

Heat Pump Thermostat Wiring

If you have a heat pump, you need to pay special attention to wiring due to the system’s ability to both heat and cool. Key considerations include:

  • O/B Wire: Controls the reversing valve, determining if the system is in heating mode or cooling mode.
  • Aux and E Wires: Manage auxiliary heat and emergency heating functions.

In dual transformer systems, where separate transformers power heating and cooling, make sure that separate heating  and cooling transformers are correctly wired to prevent system malfunctions.



Smart Thermostats & Advanced Features

Upgrading to a new thermostat with advanced features can increase comfort and energy efficiency. Smart thermostats offer remote access, learning capabilities, and integration with other smart home devices. However, they often require a C wire for a continuous power supply.

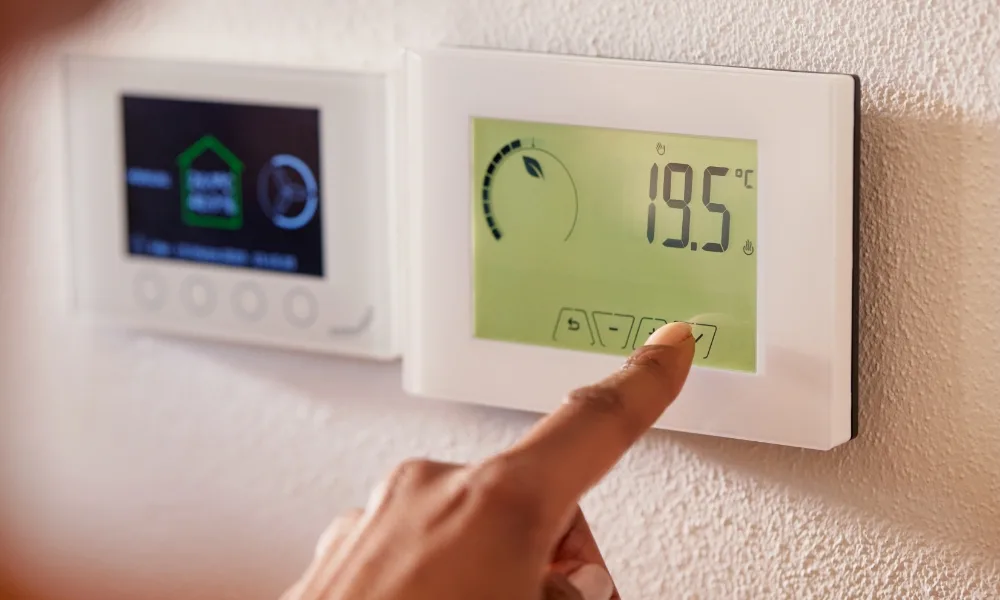

Common Thermostat Wiring Configurations Explained
During thermostat installation, follow the manufacturer’s instructions carefully. Use electrical tape to secure connections and label wires to match the thermostat wiring labels. Consulting an HVAC wiring diagram can also aid in the HVAC thermostat installation process. Need a reliable HVAC contractor? Contact us now!

LOOKING TO REPAIR, REPLACE OR UPGRADE?

Our experts can walk you through every step of the way, from prospected which tailored solution would be best for you, to installing and maintaing it…

Contact US

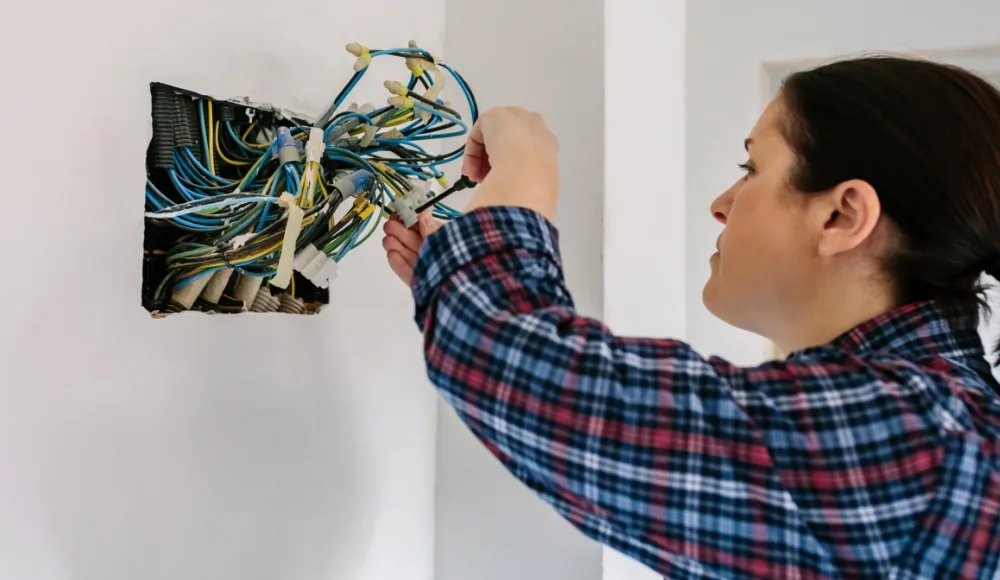

Thermostat Control Panel Wiring For Hvac Systems

Safety & Best Practices

When working with thermostat wiring:
  • Turn off power to the HVAC unit to prevent electrical shocks.
  • Label wires before disconnecting the old thermostat.
  • Use proper tools, such as wire strippers and screwdrivers.
  • Avoid using a jumper wire manually unless specified by the manufacturer.
  • Consult a professional for complex systems or if you’re unsure about the wiring configuration.
Remember, not all HVAC systems are the same, and incorrect wiring can lead to heat pump malfunctions or system damages.

Conclusion

Understanding thermostat wiring is vital for maintaining an efficient heating and cooling system in your home. If you’re managing a traditional HVAC setup or considering an upgrade to a modern smart thermostat, knowing how the wiring works is important. It’s more than just a technical detail—it’s the foundation for consistent comfort and energy efficiency.

Thermostat wiring may seem intimidating at first, especially when you’re staring at a jumble of colored wires. But it plays an important role in making sure your HVAC system communicates properly with your thermostat. Each wire controls a different function and if even one is connected incorrectly, your system could fail to operate as it should.

Safety should always come first. Before doing any work, turn off power to your HVAC system at the breaker box to avoid electric shock or damage to your equipment. If you’re unsure about any part of the process—or if your system has unusual wiring—it’s best to call in a licensed HVAC technician. Professional help can safely install your system to avoid costly mistakes. It also optimizes the system’s performance for long-term protection and efficiency. So if you are considering a thermostat upgrade, need an installation or simply a repair, call our experts now!

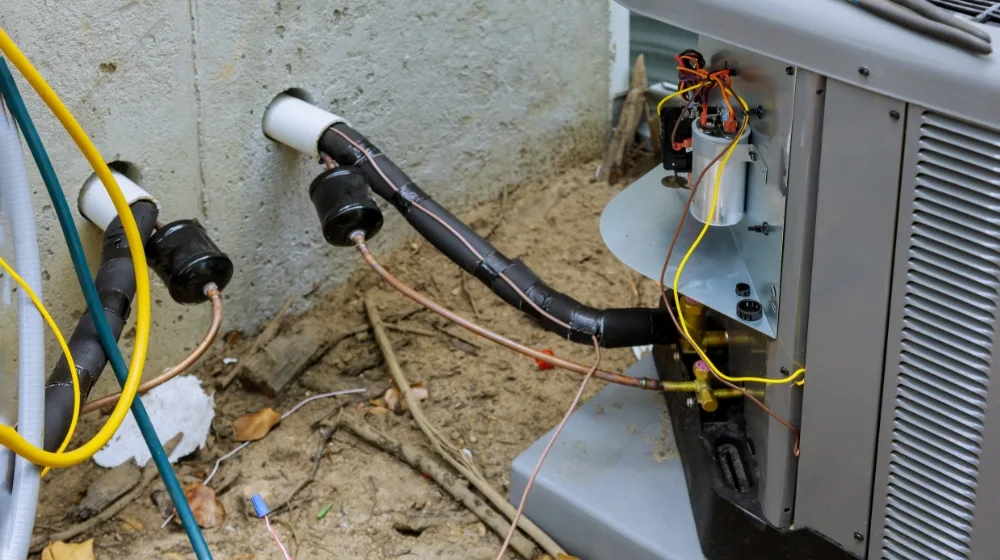

Troubleshooting Thermostat Wiring In Hvac Setup

Green Street HVAC : Thermostat Installation in Tennessee

If you want a reliable thermostat repair and installation in Springfield, Ashland City, Nashville and other areas in Tennessee, Green Street HVAC is here to help. With decades of experience in hvac systems, we are a trusted name in Springfield, Tennessee.

Our certified team is just a call away if you need professional Aeroseal duct sealing, full HVAC system maintenance, ductwork inspection, or furnace repair.

Contact Green Street HVAC today at (615) 788-4329 to schedule your service or get a free quote online!
